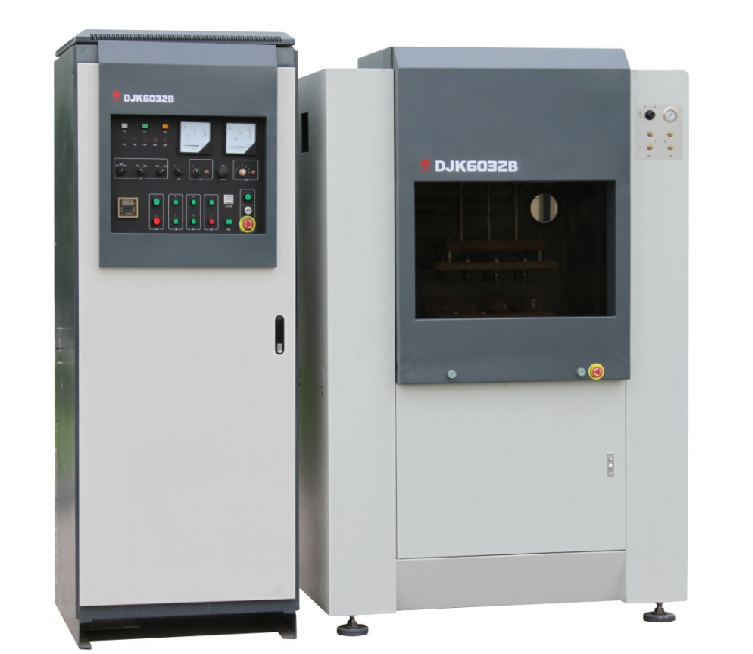

电化学(电解)去毛刺机
Electrolytic Deburring Machine
电化学(电解)去毛刺机
产品介绍
技术指标
应用领域
下载

产品特点:

u 适用于去除零件内外部交叉孔的毛刺

u 在孔的交贯处或棱边处可形成小圆角

u 不损坏精加工表面

u 去毛刺效率高,加工质量稳定

u 可根据需求配置多工位批量进行去毛刺加工。

Product feature:

u It is suitable for removing burrs from internal and external cross holes of parts.

u Small rounded corners can be formed at the intersection or edge of the hole.

u It does not damage the finished surface.

u It offers high deburring efficiency and stable machining quality.

u Multi-station batch deburring can be configured according to requirements.


机床型号/参数Model/Parameter

单位

Unit

DJK32

DJK45

设备尺寸

Machine overall dimension

mm

2950×1900×2700

3000×2800×2800

工作台尺寸

Working table dimension

mm

630×320

800×450

电源型号

Power supply type

-

直流+脉冲模式
Direct current+Pulse current

直流+脉冲模式

Direct current+Pulse current

电解液

electrolyte

-

硝酸钠

Monarkite

硝酸钠

Monarkite

脉冲电源频率范围

Pulse power frequency range

kHz

0-2.0

0-2.0

最高表面粗糙度Ra

Maximum surface roughness Ra

μm

0.6

0.6


航空航天、汽车模具、通用领域
