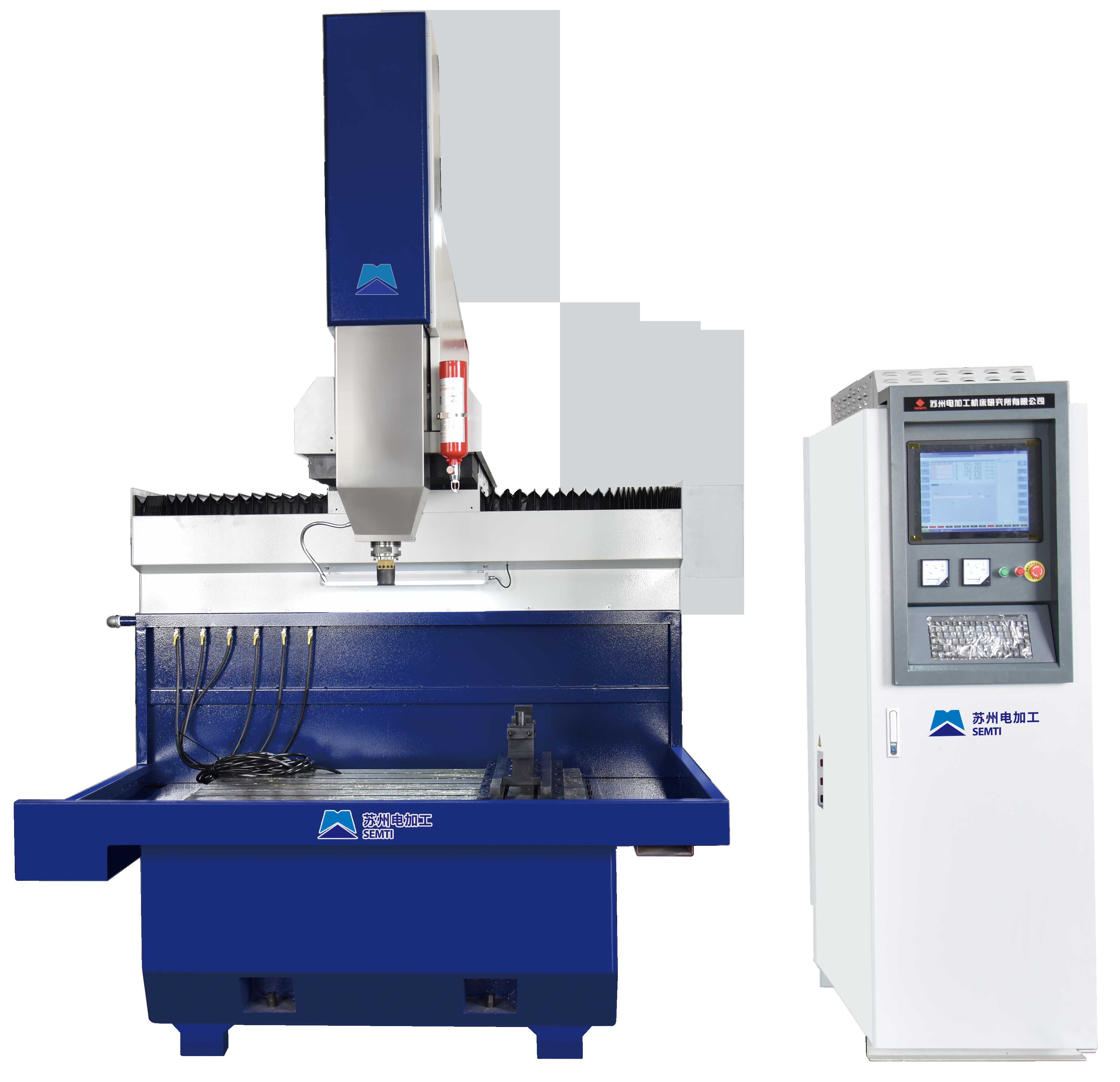

数控电火花成形机
CNC Sinking Electrical-discharge Machine
数控电火花成形机
产品介绍
技术指标
应用领域
下载

产品特点:

u 采用进口交流伺服电机控制,进口品牌滚珠丝杠,直线导轨

u 自动升降油槽(选配)

u 摇篮式转台,五轴加工功能(选配)

u 自动转换加工参数,带工艺数据库,粗、中、精加工自动完成

u 脉冲电源多种波形组合,适应控制,高效率,低损耗

Product feature:

u This equipment is controlled by imported AC servo motor, imported brand ball screw and linear guide rail.

u It has an automatic lifting oil tank.(optional)

u It adopts cradle turntable and has five-axis machining function.(optional)

u It has automatic conversion of machining parameters, with process database, rough, middle and finish machining automatically.

u It uses a variety of pulse power forms to adapt to control, with high efficiency and low loss.


机床型号/参数Model/Parameter

单位Unit

DK7140

DK7160

DK7180

DK1250

工作台尺寸

Working table dimension

mm

700×400

900×500

1100×600

1300×600

X/Y/Z轴行程

X/Y/Z axis travel

mm

400×300×300

600×400×350

800×500×400

1200×500×400

工作台最大承重

Maximum load-bearing of the workbench

kg

1000

1800

3000

4000

主轴下端距工作台最大距离

Maximum distance between lower end of spindle and worktable

mm

600

750

900

830

最大电极重量

Maximum electrode weight

kg

100

150

100

100

工作液

Working fluid


火花液

火花液

火花液

火花液

最大加工电流

Maximum machining current

A

100

100

100

100

最低电极损耗

Minimum electrode loss

%

0.1

0.1

0.1

0.1

最佳表面粗糙度(Ra)

Optimum surface roughness (Ra)

μm

0.1

0.1

0.1

0.1


航空航天、通用领域
