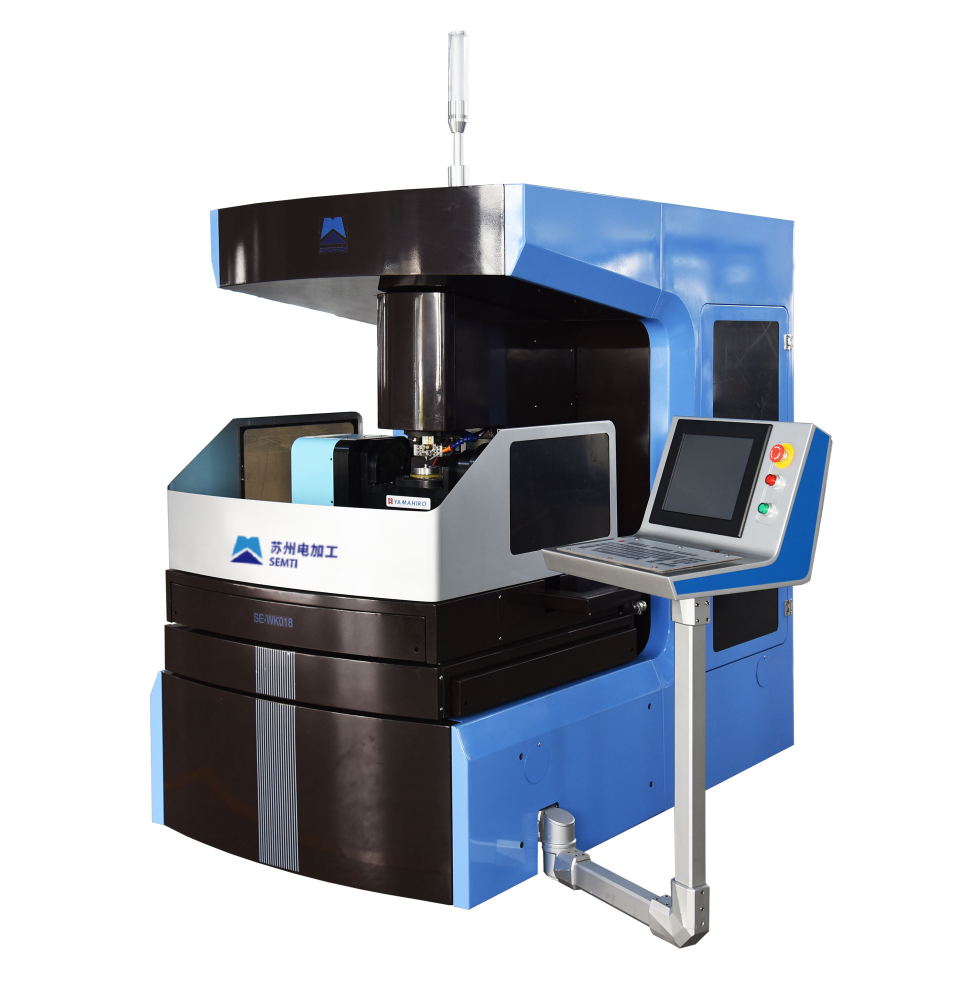

数控电火花精密微孔机
CNC Micro-hole Drilling Electrical-discharge Machine
数控电火花精密微孔机
产品介绍
技术指标
应用领域
下载

产品特点:

u 采用最新工业设计,拥有开放式、半封闭和全封闭等造型设备

u 精度高、表面质量好,可加工各种复杂孔形

u 采用工控机控制,可自动报警更换电极,自动转换加工规准,自动完成群孔工件的加工过程

u 可实现盲孔定深加工

u 加工表面粗糙度 : Ra ≤ 0.6μm

u 具有倒锥孔加工功能(选配)

u 智能一键自动加工功能(选配)。

Product feature:

u The latest industrial design features open, semi-closed, and fully closed modeling equipment.

u It offers high precision and good surface quality, capable of machining a variety of complex hole shapes.

u Controlled by an industrial computer, it can automatically alarm to replaceelectrodes, change machining criteria, and complete the machining process of group hole workpieces automatically.

u It realizes blind hole fixed-depthmachining.

u Machining surface roughness: Ra ≤ 0.6μm.

u It includes an inverted cone hole machining function (optional) and an intelligent one-click automatic machining function. (optional)


机床型号Model

单位Unit

SE-WK007*

SE-WK008*

SE-WK018

参数Parameters

配置Configures

喷丝板专机

Special equipment for the spray board

XYWZ普通四轴

FouraxisXYWZ

倒锥型,含C轴

Inverted cone type, with the C-axis

微孔一体机

All-in-one machine

工作台尺寸Working table dimension

mm

600×400

600×400

600×400

600×400

X/Y/W轴行程X/Y/W axis travel

mm

400×320×200

320×250×200

320×250×200

400×320×200

A轴行程

A-axis travel

°

-

100~-30

100~-30

100~-30

B轴行程

B-axis travel

°

-

0~360

0~360

0~360

C轴行程

C-axis travel

°

±180

-

360

-

各轴最小驱动当量Minimum drive equivalent for each axis

mm或°

0.001

0.001

0.001

0.001

工作台最大承重Maximum load-bearing of the workbench

kg

200

200

200

25

最大工件高度Maximum workpiece height

mm

150

200

200

150

加工电极范围Range of processed electrodes

mm

0.05~1.0

0.05~1.0

0.05~1.0

0.05~1.0

最大深径比Maximum depth diameter ratio

mm

25:1

25:1

25:1

25:1

工作液

Fluid


去离子水

Deionized water

去离子水

Deionized water

去离子水

Deionized water

去离子水

Deionized water

最大加工电流

Maximum processing current

A

1

0.5

0.5

0.5

最大加工效率

Maximum processing efficiency

mm/min

2

2

2

2

XY轴定位精度

The XY-axis positioning accuracy

mm

0.015

0.025

0.025

0.015

XY轴重复定位精度The XY axis repeat positioning accuracy

mm

0.008

0.015

0.015

0.008

AB轴定位精度

Positioning accuracy of the AB axis

-

35

35

35

AB轴重复定位精度

Repeat positioning accuracy of the AB axis

-

20

20

20

C轴定位精度

C axis positioning accuracy

45

-

-

-

C轴重复定位精度

The C-axis repeat positioning accuracy

30

-

-

-


航空航天、通用领域
